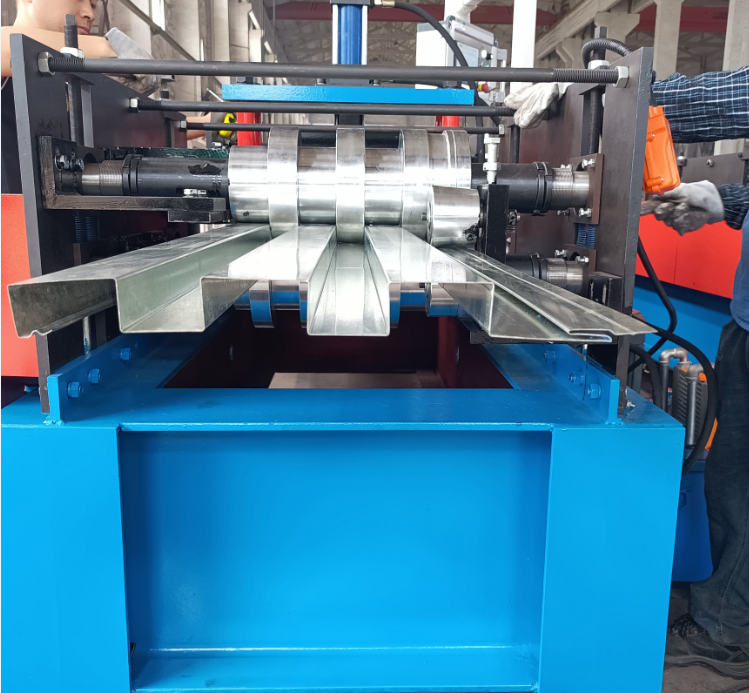

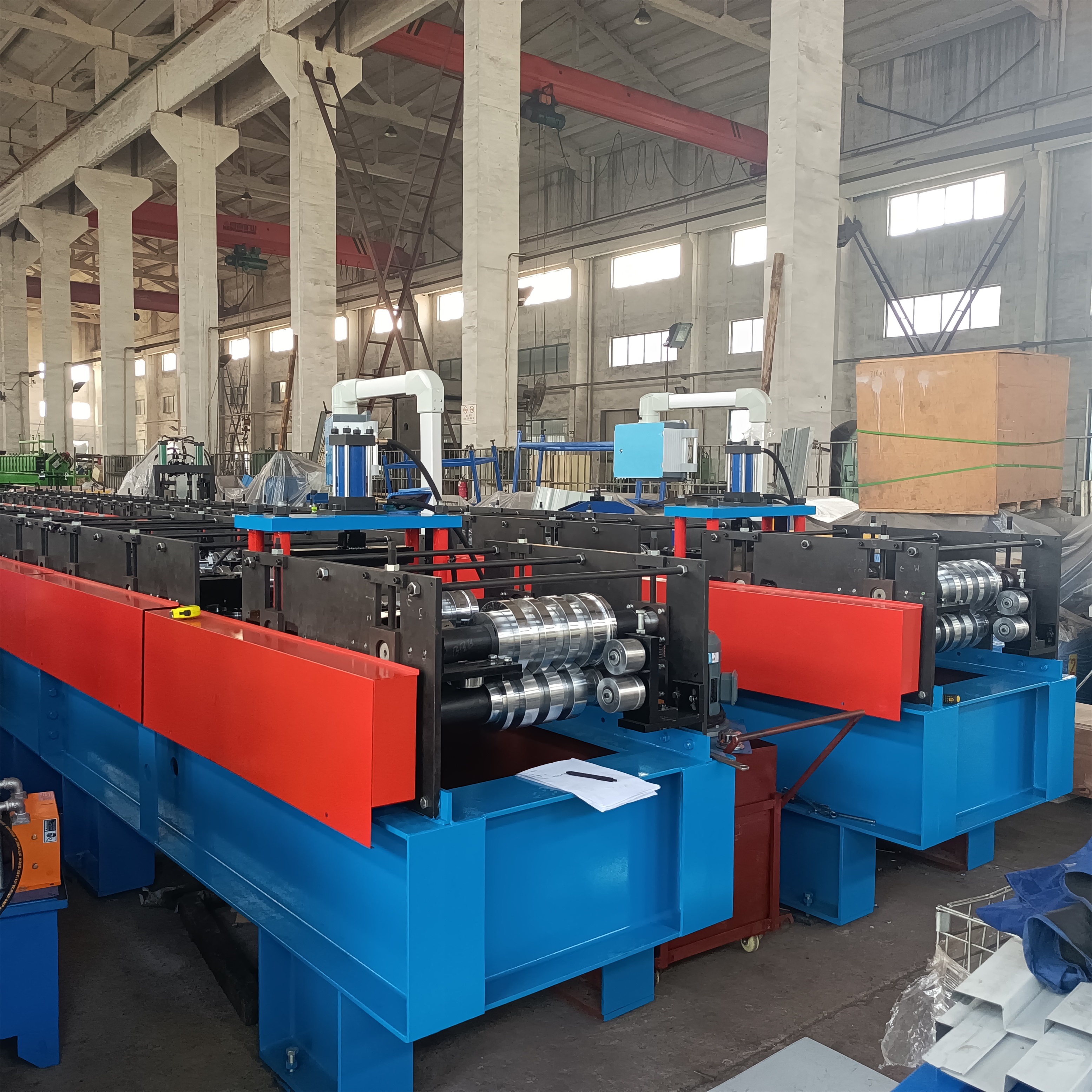

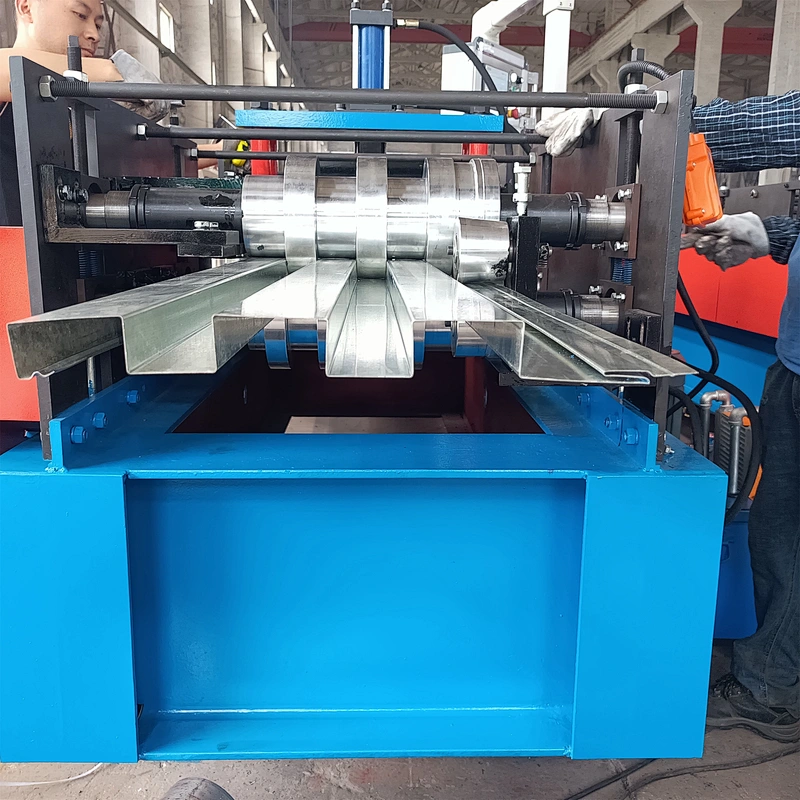

Wall cladding metal rolling forming machine
Wall cladding metal rolling forming machine is designed to make the wall cladding sheet in batch fully automatically. Metal roof and wall cladding encompasses a plethora of different materials, each with its own unique strengths and weaknesses. The material choice will be influenced by a number of project-specific factors, including desired aesthetic, climatic conditions, chosen structural system, the nature of adjacent materials and the construction budget. Here I will introduce one new type design for wall cladding.

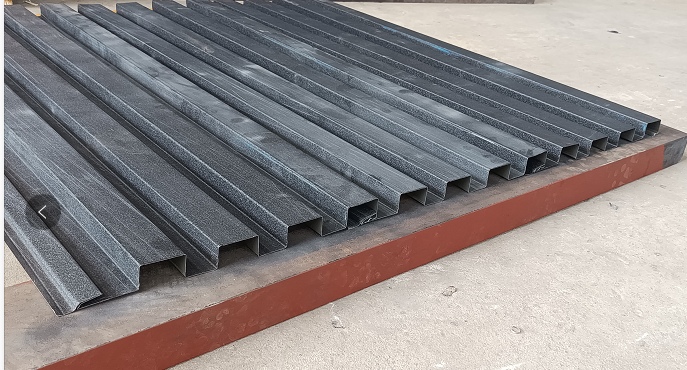

Finished wall cladding sheet pictures:

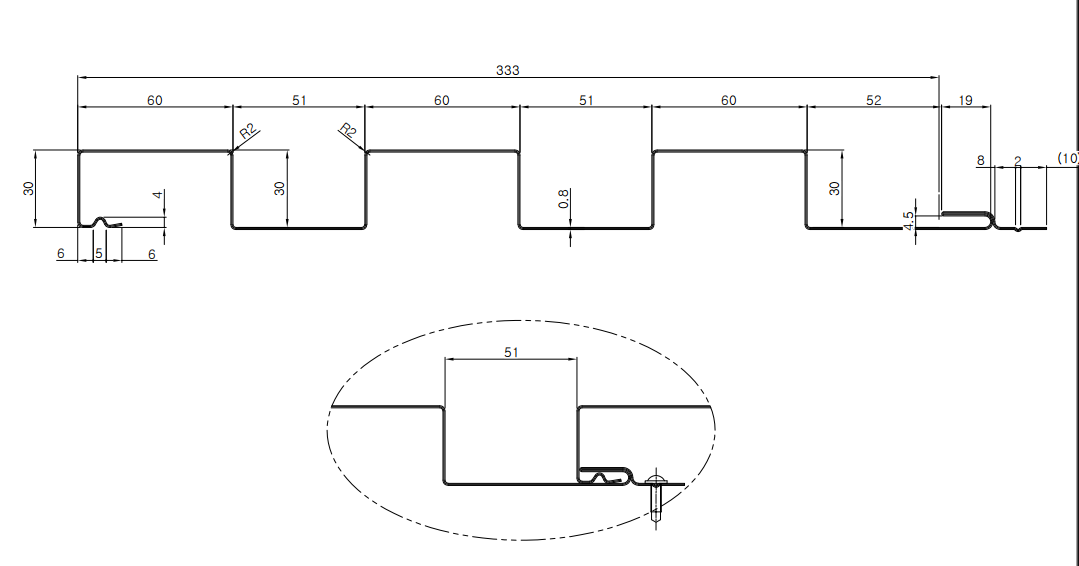

Zhongtuo wall cladding profile advantages:
- Easy for installation, and joint parts are connected rightly.
- An integrated, concealed fastener, rain screen, and wall panel system with a consistent depth of 30mmand a variety of panel configurations.
- Exposed Fastener walls are used in every type of building nowadays. For a wall project, specify the"B"profile exposed fastener with a finished side and a low cell lap. From the traditional sine wave C profile to the bold O-24 profile, a wide range of profile design options are available.

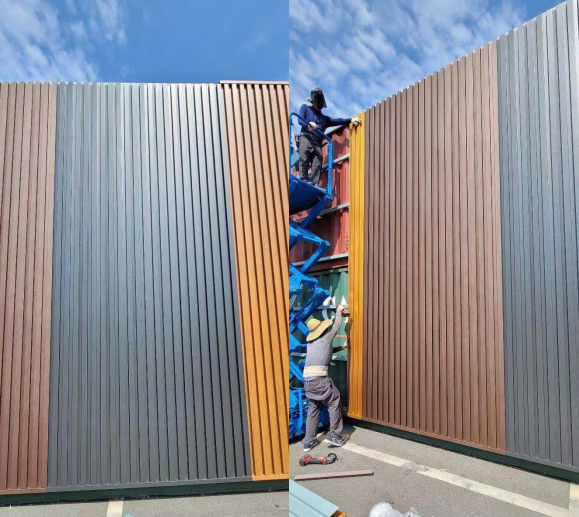

Here is the installation pictures for your reference:

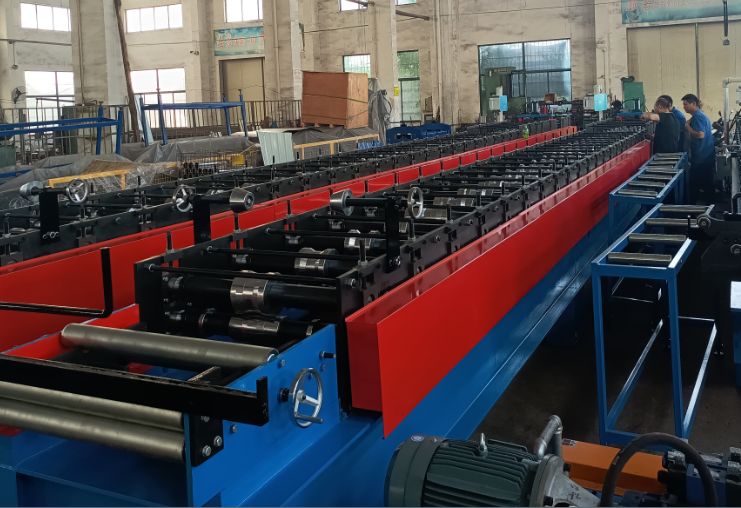

Wall cladding metal rolling forming machine
Wall cladding metal rolling forming machine parameters for your reference:
| Material | Material | HR,CR,G/Z,PRE-PAINTED COILER |
| Thickness | 0.5 to 0.7mm | |
| Input coil width | 607mm（around） | |
| Rolling | Roller station | 28 roller stations |
| Working speed | 15M/Min | |
| Roller shaft | Shaft diameter=70mm | |
| Middle plate thickness | 20mm | |
| Roller material | 45# hard chroming | |
| Shaft diameter | 45#steel | |
| Transmission | ByChain of size 1 inch | |
| Machine power | 7.5 kw | |
| Shearing method | Hydraulic shearing | |
| Shearing error | ±1mm | |
| Blade materiel | Cr 12 |
Advantage of Zhongtuo Wall cladding metal rolling forming machine:
- With more rolling station to make sure the rolling more fast and steady.
- With before and after shearing both to make sure the usage easily.
- With the adjustable PLC, easy to use.
- Use lots of side rollers to make sure the edge beautiful.
- Special design and accurate process to make sure the profile prefect.
ZhongtuoWall cladding metal rolling forming machine Working videos for your reference:
