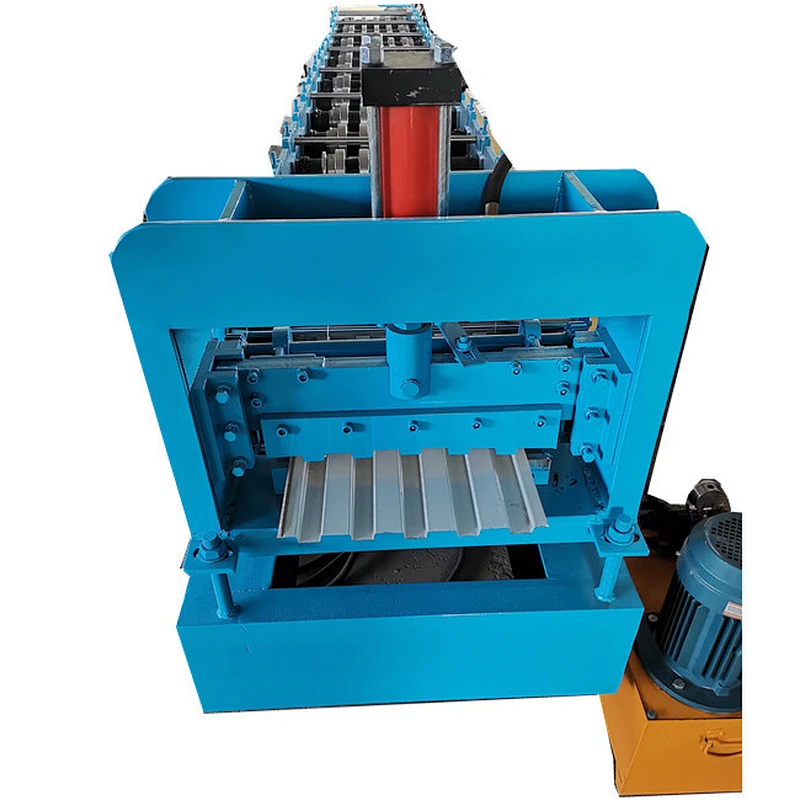

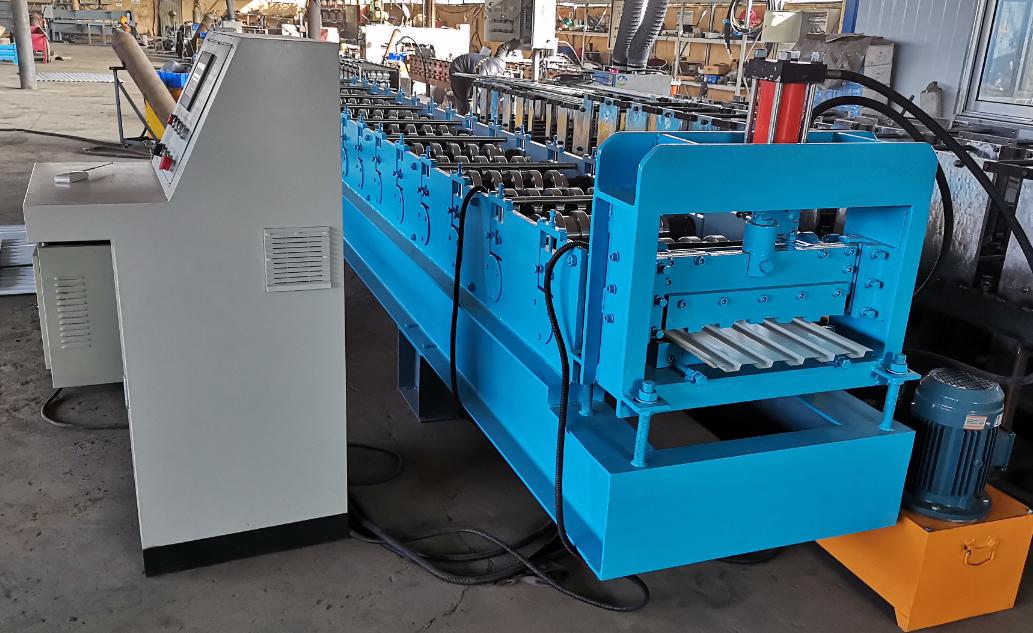

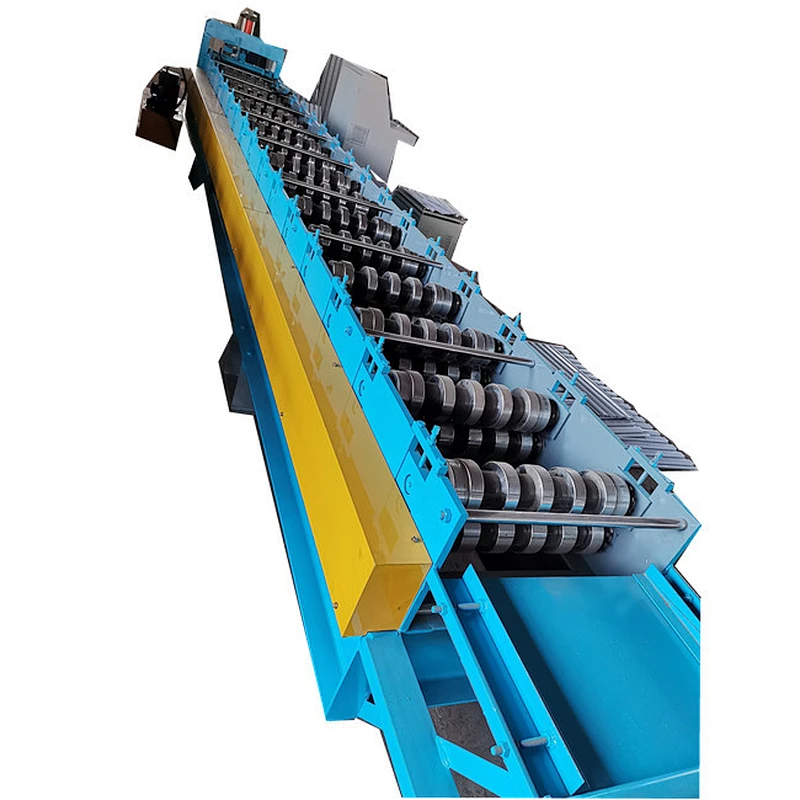

Australian Type Shutter Door Roll Forming Machine
Australian type shutter door roll forming machine is designed to make the shutter in batch fully automatically. Australian & Saudi Style Rolling Shutter Door Machine with low noise than normal Rolling Shutter Door Machine. The complete door roll forming machine line includes decoiler, main machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system. We simply program the pieces and length we need in the computer and the door machine produces it automatically. The machines are easy to operate and running stable.

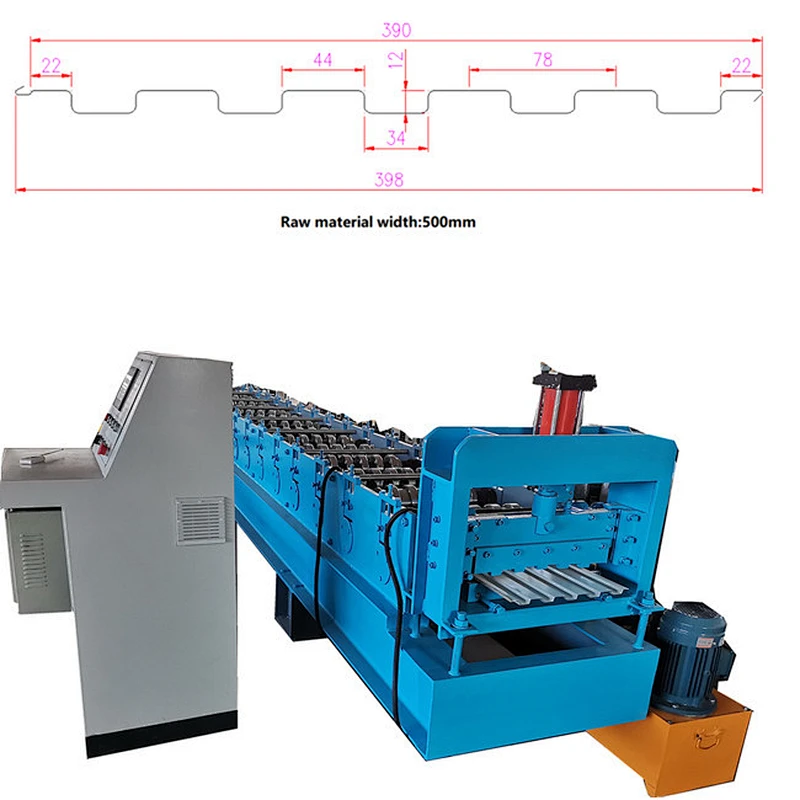

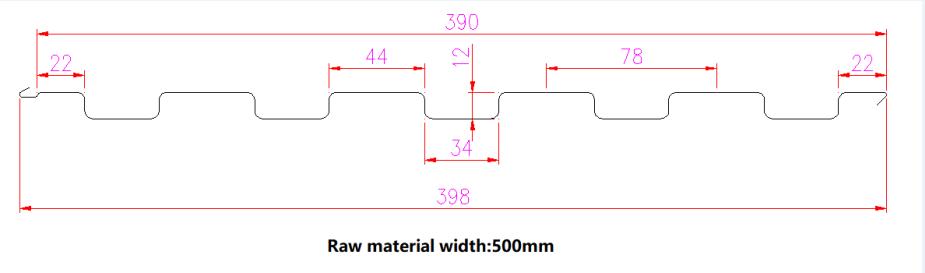

Here I will take the following drawing profile for your reference:

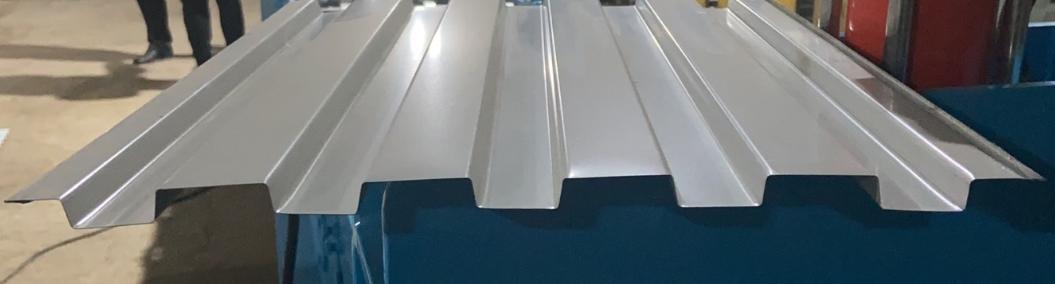

TheAustralian type shutter:

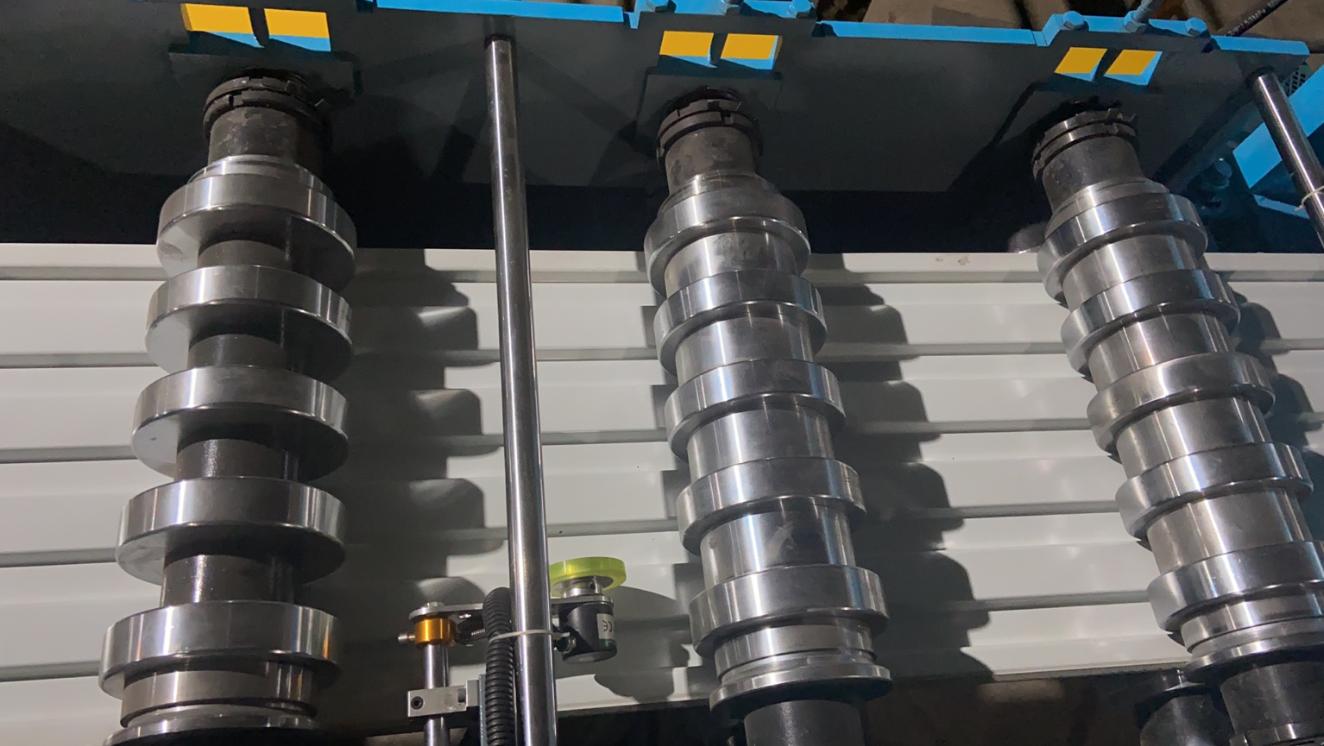

Australian type shutter door roll forming machine design:
Australian type shutter door roll forming machine parameters:
Processing material: colored steel plate, galvanized plate, or aluminium plate
Material thickness: 0.8---1.2 mm
Material hardness: 550 mpa---350 mpa
Material width: 178mm-203mm
Formed width: 101.6mm
Forming speed: 12m/min
Working speed :8m/min
Feature : Ensure stability , precision and lifetime.
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission( the first and the last roller,the down roller should be attached with the upper one with the chain drive.), roller surfaces polishing, hard plating , heat treatment and galvanizational treatment . The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Length of the main part: about 12000х1700х1500
Weight of main part: 5 tons
Voltage : 380V 50HZ 3Phase
Roller fixer : Guide column
Frame : 400 H steel
Drive mode: chain
Material of rollers:45# steel, surface hard chromium plating.
Material of shafts: 45# steel with tempering
Diameter of shafts: φ70mm
Number of rollers : 20 rollers
Main power: 15kw（cycloidal planetary gear speed reducer）
Together with the shutter profiles machine, we also supply the machine of seam locking machine. Here is the seam locking machine pictures for your reference:
Here is the Australian type shutter door roll forming machine working video for your reference:
0"height="415"src="https://www.youtube.com/embed/gDw40EvVYAQ"title="YouTube video player"frameborder="0"allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture"allowfullscreen>
