32/1000 Box Profile PE orAluminum foil CoatedRoof Sheet
Zhongtuo new material designed a serious products of metal roofing sheets for preventing condensation and corrosion. Those material mainly is used in the following application area.
Farm buildings: Warehouse for dry products and machinery, stables, industrial sheds, uninstalled , workshops, Shed, garages, storage depots
PE or Aluminum foil Coated Roof Sheet has the following advantages:
Absorbs condensation and prevents the fall of water dro ps. No damage to materials stored below.
Evacuates the water overflow outside downslope, strong drainage.
Prevents water upwelling from the lower slope or junction roof in case of rain or snow.
Lasting protection against corrosion on inner side of the roofing sheets.
Remove the use of stretched absorbent sheet or other additional material with absorbing goal.
Offers a time saving construction for anti-condensation system.
Meets the fire regulations.
Cheap cost and for long time to use

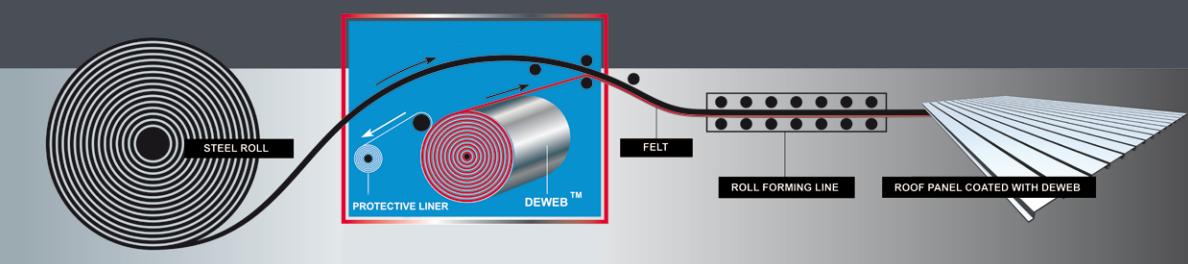

How to roll the PE or Aluminum foil PPGI coil to beautiful metal roofing sheets:

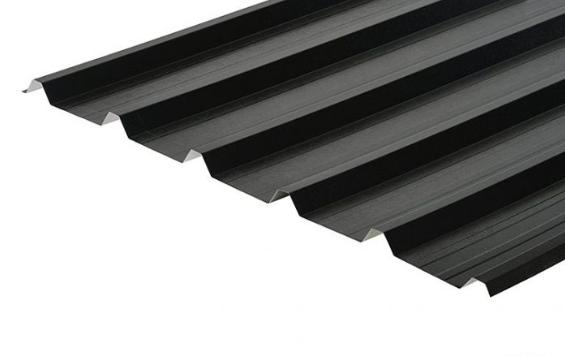

Zhongtuo new material could be used for any type profiles, here we take 32/1000 Box Profile PE or Aluminum foil Coated Roof Sheet for example to show you what design it could be:
Specifications:
Application: | Wall or Roofwith PE or Aluminum foil Coated |
External Finish: | PVC Plastisolalso could be |
Internal Finish: | Light grey Polyester, PE color all optional |

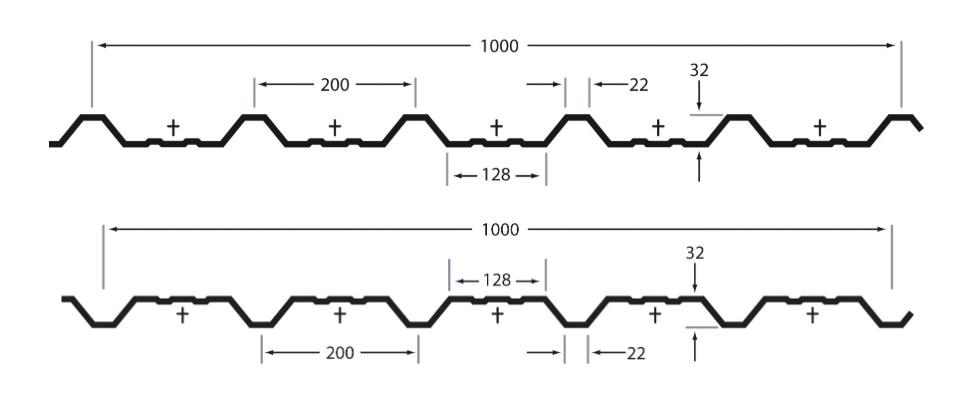

External Face: | Profiled 32/1000, 32mm profile height, 200mm pitch centres |
Standard Width: | 1000mm when lapped |
Max Length: | 9m |
Minimum Pitch: | 4 degrees |
Gauge Thickness: | 0.7mm |
Weight: | 6.9kg/m2 |
When used in roof applications, construction can be safely undertaken down to a 4 degree pitch using conventional through sheet self drilling fasteners in lower part of profile.
What it can benefits of 32/1000 Box Profile Roofing Sheets:
1.These sheets are highly economical and robust profile. The cost just a little bit higher than the normal PPGI coil but it can be used more than 10 years.
2.They come in a range of different colours to suit every aesthetic and can be manufactured to your specific length requirements.
3.Lightweight and easy to fit, your installation process will be short and simple, and you can rest assured that they have been independently tested in line with current CE EN 14782.
3.Stainless Steel or full hard SG550 is also the ideal material Roofing Sheets, thanks to the excellent resistant properties against wind, heat, rain and snow, as well as rust, staining and corrosion.
